SST31LF043 - 4 Mbit Flash 1 Mbit or 256 Kbit SRAM ComboMemory

Description

The SST31LF041/041A/043/043A devices are a 512K x8 CMOS flash memory bank combined with a 128K x8 or 32K x8 CMOS SRAM memory bank manufactured with SST’s proprietary, high performance SuperFlash technology.

The SST31LF041/041A/043/043A devices write (SRAM or flash) with a 3.0-3.6V power supply.

Features

  • Monolithic Flash + SRAM ComboMemory.
  • SST31LF041/041A: 512K x8 Flash + 128K x8 SRAM.
  • SST31LF043/043A: 512K x8 Flash + 32K x8 SRAM.
  • Single 3.0-3.6V Read and Write Operations.
  • Concurrent Operation.
  • Read from or write to SRAM while Erase/Program Flash.
  • Superior Reliability.
  • Endurance: 100,000 Cycles (typical) www. DataSheet4U. com.
  • Greater than 100 years Data Retention.
  • Low Power Consumption:.
  • Active C.

📥 Download Datasheet

Datasheet Details

Part number SST31LF043
Manufacturer SST
File Size 361.23 KB
Description 4 Mbit Flash 1 Mbit or 256 Kbit SRAM ComboMemory
Datasheet download datasheet SST31LF043 Datasheet

📁 Similar Datasheet

  • SST310 - N-Channel JFETs (Vishay)
  • SST310 - (SST308 - SST310) N-Channel JFET High Frequency Amplifier (Calogic)
  • SST310 - Amplifier (Micross)
  • SST308 - N-Channel JFETs (Vishay)
  • SST308 - (SST308 - SST310) N-Channel JFET High Frequency Amplifier (Calogic)
  • SST308 - Amplifier (Micross)
  • SST309 - N-Channel JFETs (Vishay)
  • SST309 - (SST308 - SST310) N-Channel JFET High Frequency Amplifier (Calogic)
  • SST309 - Amplifier (Micross)
  • SST3215 - N-Channel MOSFET (SeCoS)
Other Datasheets by SST
  • SST31LF043A - 4 Mbit Flash 1 Mbit or 256 Kbit SRAM ComboMemory
  • SST31LF041 - 4 Mbit Flash 1 Mbit SRAM ComboMemory
  • SST31LF041A - 4 Mbit Flash 1 Mbit SRAM ComboMemory
  • SST31LF021 - 2 Mbit Flash 1 Mbit SRAM ComboMemory
  • SST31LF021E - 2 Mbit Flash 1 Mbit SRAM ComboMemory
  • SST32HF162 - (SST32HFxxx) Multi-Purpose Flash (MPF) + SRAM ComboMemory
  • SST32HF1621C - (SST32HFxxx1C) Multi-Purpose Flash Plus + SRAM ComboMemory
  • SST32HF1622C - (SST32HFxxx2C) Multi-Purpose Flash Plus + SRAM ComboMemory

Full PDF Text Transcription

Click to expand full text

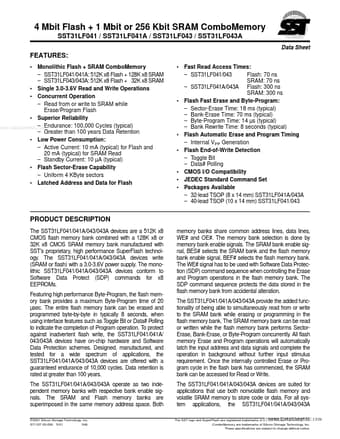

4 Mbit Flash + 1 Mbit or 256 Kbit SRAM ComboMemory SST31LF041 / SST31LF041A / SST31LF043 / SST31LF043A SST31LF041 / 041A4Mb Flash (x8) + 1 Mb SRAM (x8) ComboMemories Data Sheet FEATURES: • Monolithic Flash + SRAM ComboMemory – SST31LF041/041A: 512K x8 Flash + 128K x8 SRAM – SST31LF043/043A: 512K x8 Flash + 32K x8 SRAM • Single 3.0-3.6V Read and Write Operations • Concurrent Operation – Read from or write to SRAM while Erase/Program Flash • Superior Reliability – Endurance: 100,000 Cycles (typical) www.DataSheet4U.
