BGM210P - Wireless Gecko Bluetooth Module

Silicon Labs

📥 Download Datasheet

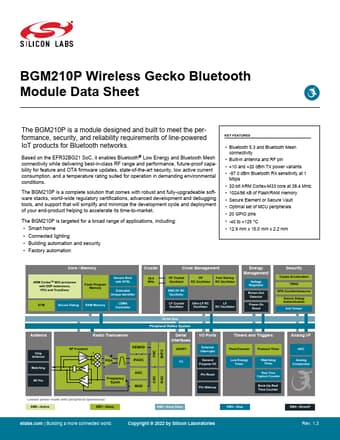

BGM210P Datasheet Preview — Preview of BGM210P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BGM210P
Manufacturer	Silicon Labs
File Size	2.35 MB
Description	Wireless Gecko Bluetooth Module
Datasheet	BGM210P-SiliconLaboratories.pdf

BGM210P Product details

Features

Bluetooth 5.3 and Bluetooth Mesh connectivity.
Built-in antenna and RF pin.
+10 and +20 dBm TX power variants.
-97.0 dBm Bluetooth RX sensitivity at 1 Mbps.
32-bit ARM Cortex-M33 core at 38.4 MHz.
1024/96 kB of Flash/RAM memory.
Secure Element or Secure Vault.
Optimal set of MCU peripherals.
20 GPIO pins.
-40 to +125 oC.
12.9 mm x 15.0 mm x 2.2 mm Core / Memory ARM CortexTM M33 processor with DS.
