BGM1012 - MMIC wideband amplifier

Description

Silicon Monolithic Microwave Integrated Circuit (MMIC) wideband amplifier with internal matching circuit in a 6-pin SOT363 SMD plastic package.

Features

  • Internally matched to 50 Ω.
  • Very wide frequency range (4 Ghz at 3 dB bandwidth).
  • Very flat 20 dB gain (DC to 2.9 Ghz at 1 dB flatness).
  • 10 dBm saturated output power at 1 GHz.
  • High linearity (18 dBm IP3(out) at 1 GHz).
  • Low current (14.6 mA).
  • Unconditionally stable.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BGM1011 MMIC wideband amplifier NXP
BGM1013 MMIC wideband amplifier NXP
BGM1032N7 GPS and GLONASS Front-End Module Infineon
BGM1033N7 GPS and GLONASS Front-End Module Infineon
BGM1034N7 GPS and GLONASS Front-End Infineon

Other Datasheets by Philips Semiconductors (now NXP Semiconductors)

Part Number Description
BGM1013 MMIC wideband amplifier
BGM1014 MMIC wideband amplifier

Full PDF Text Transcription

Click to expand full text

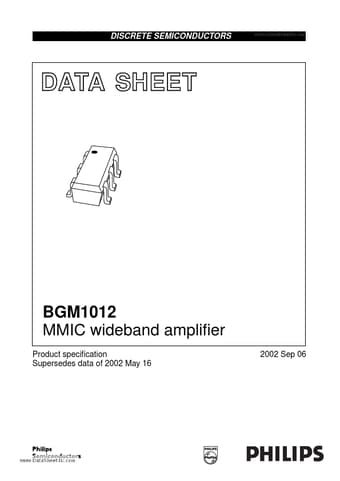

DISCRETE SEMICONDUCTORS www.DataSheet4U.com DATA SHEET book, halfpage MBD128 BGM1012 MMIC wideband amplifier Product specification Supersedes data of 2002 May 16 2002 Sep 06 Philips Semiconductors www.DataSheet4U.com Product specification MMIC wideband amplifier FEATURES • Internally matched to 50 Ω • Very wide frequency range (4 Ghz at 3 dB bandwidth) • Very flat 20 dB gain (DC to 2.9 Ghz at 1 dB flatness) • 10 dBm saturated output power at 1 GHz • High linearity (18 dBm IP3(out) at 1 GHz) • Low current (14.6 mA) • Unconditionally stable. APPLICATIONS • LNB IF amplifiers • Cable systems • ISM • General purpose. DESCRIPTION Silicon Monolithic Microwave Integrated Circuit (MMIC) wideband amplifier with internal matching circuit in a 6-pin SOT363 SMD plastic package.
