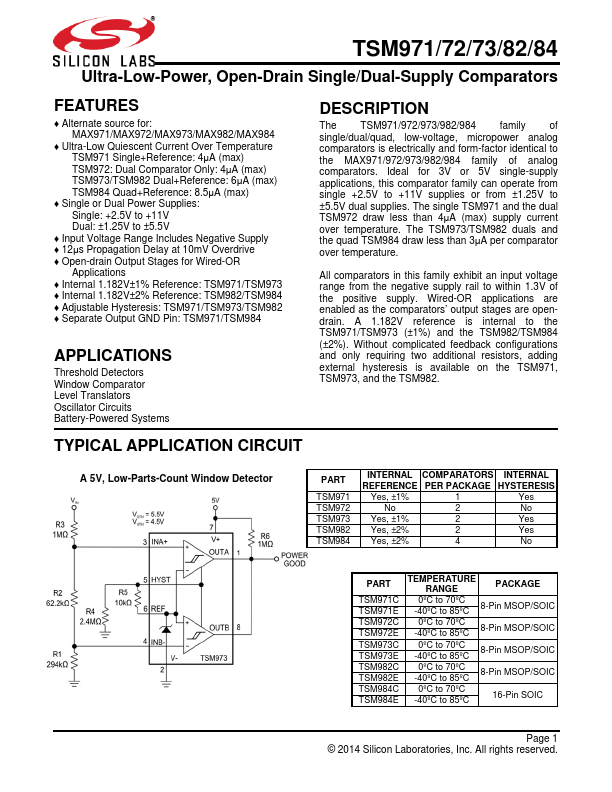

TSM984, TSM971 Open-Drain Single/Dual-Supply Comparator

Silicon Laboratories

Description

TSM971/72/73/82/84 Ultra-Low-Power, Open-Drain Single/Dual-Supply Comparators .
The TSM971/972/973/982/984 family of single/dual/quad, low-voltage, micropower analog comparators is electrically and form-factor identical to the MAX.

📥 Download Datasheet

TSM984 Datasheet Preview — This datasheet PDF includes multiple part numbers: TSM984, TSM971. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TSM984, TSM971
Manufacturer: Silicon Laboratories
File Size: 1.43 MB
Datasheet: TSM971-SiliconLaboratories.pdf
Description: Open-Drain Single/Dual-Supply Comparator
Note: This datasheet PDF includes multiple part numbers: TSM984, TSM971.
Please refer to the document for exact specifications by model.

Features

* Alternate source for: MAX971/MAX972/MAX973/MAX982/MAX984
* Ultra-Low Quiescent Current Over Temperature TSM971 Single+Reference: 4μA (max) TSM972: Dual Comparator Only: 4μA (max) TSM973/TSM982 Dual+Reference: 6μA (max) TSM984 Quad+Reference: 8.5μA (max)
* Single or Dual Pow

Applications

* Internal 1.182V±1% Reference: TSM971/TSM973
* Internal 1.182V±2% Reference: TSM982/TSM984
* Adjustable Hysteresis: TSM971/TSM973/TSM982
* Separate Output GND Pin: TSM971/TSM984 APPLICATIONS Threshold Detectors Window Comparator Level Translators Oscillator Circuits
