TSM982, TSM971 Datasheet - Silicon Laboratories

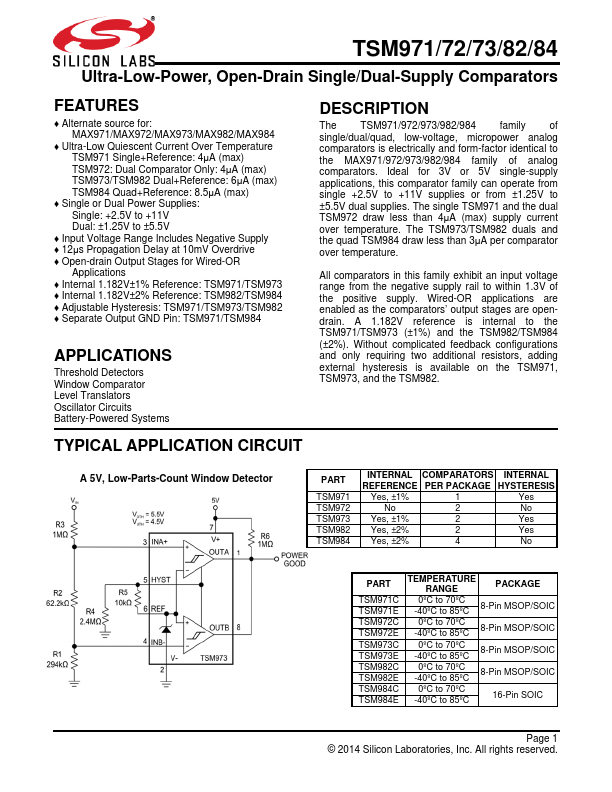

TSM982 Open-Drain Single/Dual-Supply Comparator

The TSM971/972/973/982/984 family of single/dual/quad, low-voltage, micropower analog comparators is electrically and form-factor identical to the MAX971/972/973/982/984 family of analog comparators. Ideal for 3V or 5V single-supply applications, this comparator family can operate from single +2.5V .

TSM982 Features

* Alternate source for: MAX971/MAX972/MAX973/MAX982/MAX984

* Ultra-Low Quiescent Current Over Temperature TSM971 Single+Reference: 4μA (max) TSM972: Dual Comparator Only: 4μA (max) TSM973/TSM982 Dual+Reference: 6μA (max) TSM984 Quad+Reference: 8.5μA (max)

* Single or Dual Pow

TSM971-SiliconLaboratories.pdf

This datasheet PDF includes multiple part numbers: TSM982, TSM971. Please refer to the document for exact specifications by model.

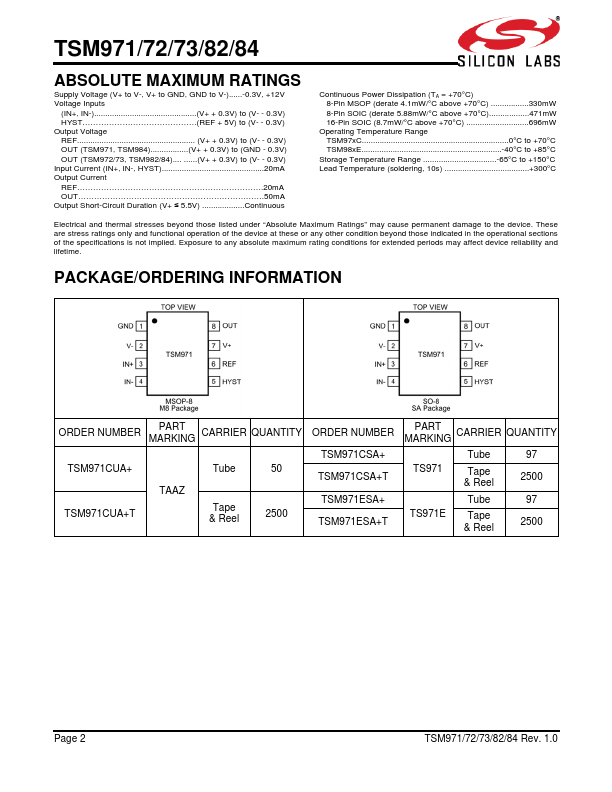

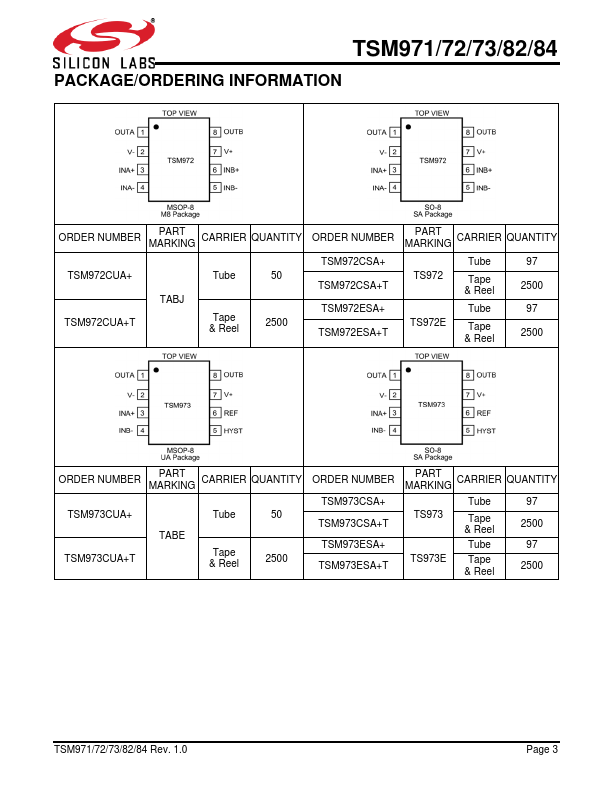

TSM982 Datasheet Preview Page 2 TSM982 Datasheet Preview Page 3

Datasheet Details

Part number:

TSM982, TSM971

Manufacturer:

Silicon Laboratories

File Size:

1.43 MB

Description:

Open-drain single/dual-supply comparator.

Note:

This datasheet PDF includes multiple part numbers: TSM982, TSM971.
Please refer to the document for exact specifications by model.
