Si4032, Si4030 - ISM TRANSMITTER

Silicon Laboratories

📥 Download Datasheet

Si4032 Datasheet Preview — This datasheet PDF includes multiple part numbers: Si4032, Si4030. Please refer to the document for exact specifications by model.

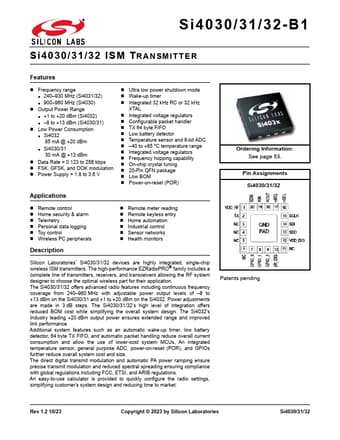

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	Si4032, Si4030
Manufacturer	Silicon Laboratories
File Size	1.45 MB
Description	ISM TRANSMITTER
Datasheet	Si4030-SiliconLaboratories.pdf
Note	This datasheet PDF includes multiple part numbers: Si4032, Si4030. Please refer to the document for exact specifications by model.

Si4032 Product details

Description

Silicon Laboratories’ Si4030/31/32 devices are highly integrated, single-chip wireless ISM transmitters.

Features

Frequency range.
240.
930 MHz (Si4031/32).
900.
960 MHz (Si4030).
Output Power Range.
+1 to +20 dBm (Si4032).
.
8 to +13 dBm (Si4030/31).
Low Power Consumption.
Si4032 85 mA @ +20 dBm.
Si4030/31 30 mA @ +13 dBm.
Data Rate = 0.123 to 256 kbps.
FSK, GFSK, and OOK modulation.
Power Supply = 1.8 to 3.6 V.
Ultra low power shutdown mode.
Wake-up timer.
Integrated 32 kHz RC or 32 kHz XTAL.
Integrated.
