Si4010-C2 - CRYSTAL-LESS SOC RF TRANSMITTER

Name: Si4010-C2
SKU: Si4010-C2-949965

Silicon Laboratories

📥 Download Datasheet

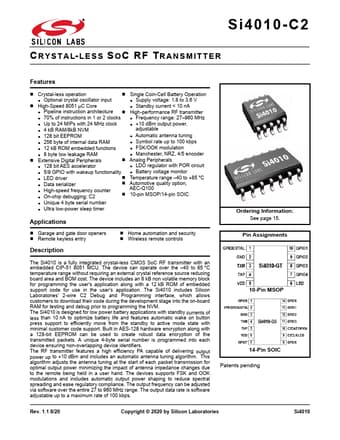

Si4010-C2 Datasheet Preview — Preview of Si4010-C2 PDF

Datasheet Details

Part number	Si4010-C2
Manufacturer	Silicon Laboratories
File Size	3.04 MB
Description	CRYSTAL-LESS SOC RF TRANSMITTER
Datasheet	Si4010-C2-SiliconLaboratories.pdf

Si4010-C2 Product details

Description

The Si4010 is a fully integrated crystal-less CMOS SoC RF transmitter with an embedded CIP-51 8051 MCU. 40 to 85 °C temperature range without requiring an external crystal reference source reducing board area and BOM cost.

Features

Crystal-less operation.
Single Coin-Cell Battery Operation.
Optional crystal oscillator input.
Supply voltage: 1.8 to 3.6 V.
High-Speed 8051 μC Core.
Standby current < 10 nA.
Pipeline instruction architecture.
High-performance RF transmitter.
70% of instructions in 1 or 2 clocks.
Frequency range: 27.
960 MHz.
Up to 24 MIPs with 24 MHz clock.
+10 dBm output power,.
4 kB RAM/8kB NVM adjustable.
128 bit EEPRO.
