Si3017, Si3052 - GLOBAL PCI DAA CHIPSET

Silicon Laboratories

The Si3017 by Silicon Laboratories is a GLOBAL PCI DAA CHIPSET. Below is the official datasheet preview.

Datasheet Details

Part number	Si3017, Si3052
Manufacturer	Silicon Laboratories
File Size	902.78 KB
Description	GLOBAL PCI DAA CHIPSET
Datasheet	Si3052-SiliconLaboratories.pdf
Note	This datasheet PDF includes multiple part numbers: Si3017, Si3052. Please refer to the document for exact specifications by model.

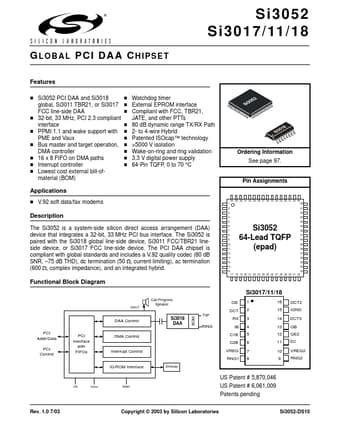

Additional preview pages of the Si3017 datasheet.

The Si3052 is a system-side silicon direct access arrangement (DAA) device that integrates a 32-bit, 33 MHz PCI bus interface.

! Si3052 PCI DAA and Si3018 ! Watchdog timer global, Si3011 TBR21, or Si3017 ! External EPROM interface FCC line-side DAA ! Compliant with FCC, TBR21, ! 32-bit, 33 MHz, PCI 2.3 compliant JATE, and other PTTs interface ! 80 dB dynamic range TX/RX Path ! PPMI 1.1 and wake support with ! 2- to 4-wire Hybrid PME and Vaux ! Patented ISOcap™ technology ! Bus master and target operation, ! >5000 V isolation DMA controller ! Wake-on-ring and ring validation ! 16 x 8 FIFO on DMA paths ! 3.
