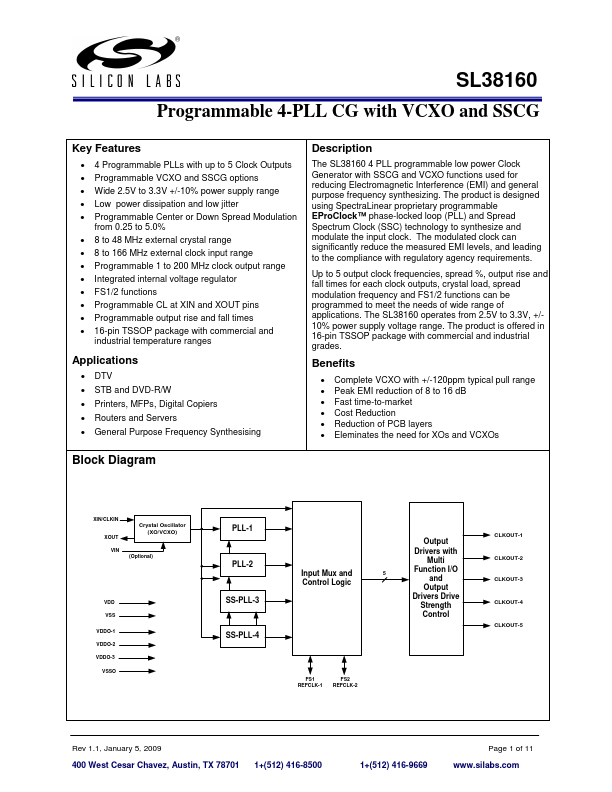

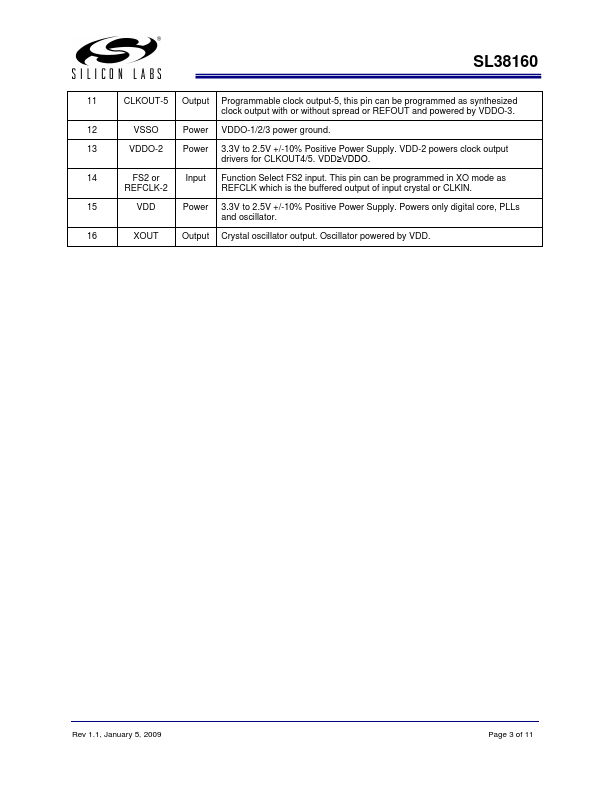

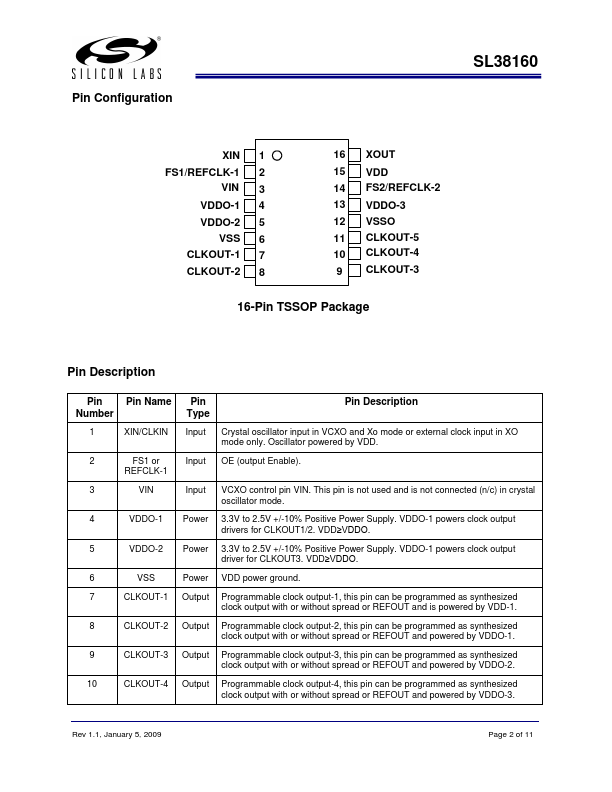

Additional preview pages of the SL38160 datasheet.

SL38160 Product details

Description

The SL38160 4 PLL programmable low power Clock Generator with SSCG and VCXO functions used for reducing Electromagnetic Interference (EMI) and general purpose frequency synthesizing.

Features

4 Programmable PLLs with up to 5 Clock Outputs.
Programmable VCXO and SSCG options.
Wide 2.5V to 3.3V +/-10% power supply range.
Low power dissipation and low jitter.
Programmable Center or Down Spread Modulation from 0.25 to 5.0%.
8 to 48 MHz external crystal range.
8 to 166 MHz external clock input range.
Programmable 1 to 200 MHz clock output range.
Integrated internal voltage regulator.
FS1/2 functions.
