SY8883 Synchronous Step Down Regulator

SY8883 Description

Application Note: SY8883 High Efficiency, 1MHz, 3A Synchronous Step Down Regulator General .
The SY8883 is a high efficiency 1MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output current.

SY8883 Features

* 2.5V to 5.5V Input Voltage Range
* 55μA Low Quiescent Current
* Low RDS(ON) for Internal Switches (Top/Bottom): 85mΩ /60mΩ
* High Switching Frequency 1MHz Minimizes the External Components
* Internal Soft-start Limits the Inrush Current
* 100% Dropout Operation
* Power

SY8883 Applications

* Set Top Box
* USB Dongle
* Media Player
* Smart Phone Typical Application VIN: 2.5-5.5V CIN 10μF/10V RPG 100k ON/ OFF L1:1.0µH IN LX VOUT:1.8V PG FB EN RH 100k RL 49.9k CFF 10pF COUT 22μF/6.3V PGND SGND Figure1. Typical Application Circuit Inductor and COUT Select

📥 Download Datasheet

Preview of SY8883 PDF

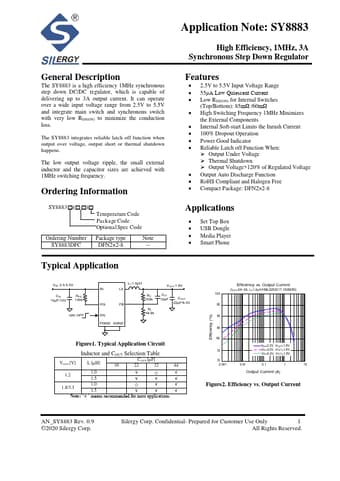

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY8883
Manufacturer
Silergy
File Size
1.22 MB
Datasheet
SY8883-Silergy.pdf
Description
Synchronous Step Down Regulator
