SY88802 LASER DIODE DRIVER

SY88802 Description

Micrel 5V 155Mbps LASER DIODE DRIVER WITH OUTPUT ENABLE SY88802 SY88802 .
The SY88802 is a high speed current switch for driving a semiconductor laser diode in optical transmission applications.

SY88802 Applications

* The modulation current (IOUT) is controlled by the current (IRSET) through the external resistor RSET. The output OUT is HIGH and no current flows through OUT when output enable is HIGH. The device incorporates complementary open collector outputs with 25mA maximum current driving capability. The e

📥 Download Datasheet

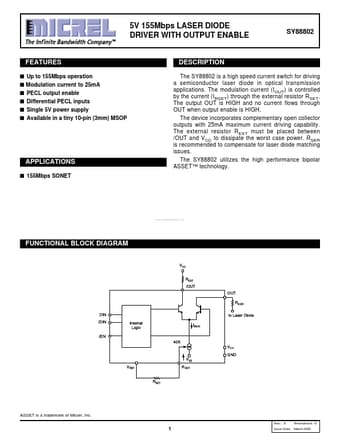

Preview of SY88802 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY88802
Manufacturer
Micrel Semiconductor
File Size
102.73 KB
Datasheet
SY88802_MicrelSemiconductor.pdf
Description
LASER DIODE DRIVER
