SY7636A - PMIC

Silergy

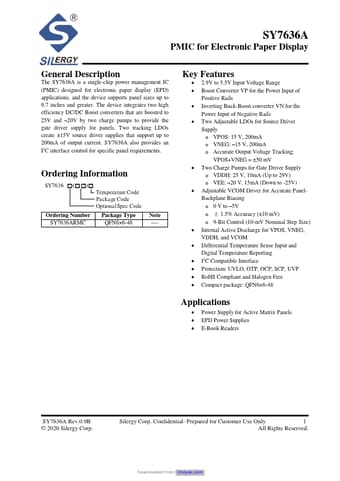

SY7636A Datasheet Preview — Preview of SY7636A PDF

Datasheet Details

Part number	SY7636A
Manufacturer	Silergy
File Size	1.65 MB
Description	PMIC
Datasheet	SY7636A-Silergy.pdf

SY7636A Product details

Description

The SY7636A is a single-chip power management IC (PMIC) designed for electronic paper display (EPD) applications, and the device supports panel sizes up to 9.7 inches and greater. 20V by two charge pumps to provide the gate driver supply for panels.

Features

2.9V to 5.5V Input Voltage Range.
Boost Converter VP for the Power Input of Positive Rails.
Inverting Buck-Boost converter VN for the Power Input of Negative Rails.
Two Adjustable LDOs for Source Driver Supply o VPOS: 15 V, 200mA o VNEG:.
15 V, 200mA o Accurate Output Voltage Tracking: VPOS+VNEG = ±50 mV.
Two Charge Pumps for Gate Driver Supply o VDDH: 25 V, 10mA (Up to 29V) o VEE:.
20 V, 15mA (Down to -25V).
Adjustable VCOM Driver for Accurate Pane.
