SY6282 3A Low Loss Power Distribution Switch

SY6282 Description

SY6282 6.5V, 3A Low Loss Power Distribution Switch Preliminary Specification General .
SY6282 is ultra-low RDS(ON) switch with programmable current limit to protect the power source from over current and short circuit conditions.

SY6282 Features

* Input voltage: 2.4V to 6.5V
* 3A load current capability
* Programmable current limit
* Over temperature protection
* Reverse blocking (no body diode)
* OUT can be forced higher than IN at shutdown
* Compact TSOT23-5 package minimizes the boa

SY6282 Applications

* USB 3G Datacard
* USB Dongle
* MiniPCI Accessories
* USB Charger
* Public Place Multi-USB Charger Typical Applications VIN CIN 10µF 6 IN OUT 1 SY6282 4 EN GND 2 ISET 3 RSET 6.8kΩ VOUT COUT 10µF Figure 1. Schematic Diagram SY6282 Rev. 0.1 Silerg

📥 Download Datasheet

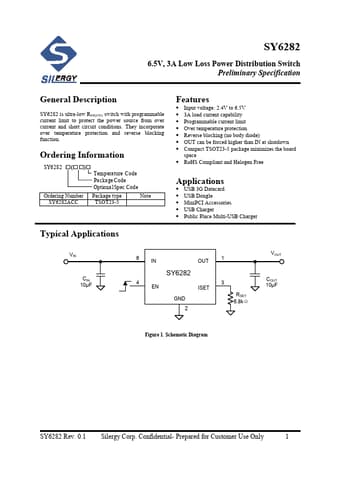

Preview of SY6282 PDF
