SY6280 2A Low Loss Power Distribution Switch

SY6280 Description

Application Note: SY6280/SY6280A 5.5V, 2A Low Loss Power Distribution Switch General .
SY6280/ SY6280A is ultra-low RDS(ON) switch with programmable current limit to protect the power source from over current and short circuit conditions.

SY6280 Features

* Input voltage: 2.4V to 5.5V
* 2A load current capability
* Programmable current limit
* Enable polarity: active high
* Over temperature protection
* Reverse blocking (no body diode)
* OUT can be forced higher than IN at shutdown
* Out

SY6280 Applications

* USB 3G Datacard
* USB Dongle
* MiniPCI Accessories Typical Applications Figure 1. Schematic Diagram(1A current limit) SY6280/A Rev1.0C Silergy Corp. Confidential- Prepared for Customer Use Only 1 Pinout (top view) SY6280/SY6280A OUT 1 5 IN GND 2 ISET 3 4 EN (SOT

📥 Download Datasheet

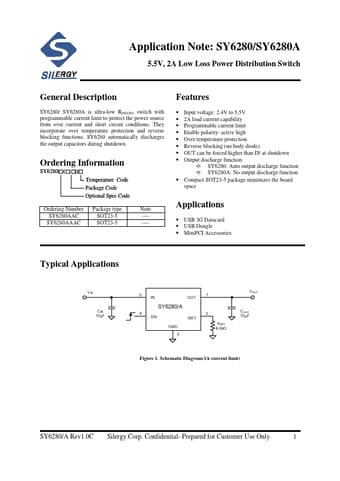

Preview of SY6280 PDF
