SY5862 Adaptive LED Current Filter

SY5862 Description

Application Notes: AN_SY5862 Adaptive LED Current Filter For LED Lighting Preliminary Specification General .
The SY5862 is an adaptive linear current regulator to eliminate low frequency current ripple targeting at LED lighting applications.

SY5862 Features

* Current filter for single stage LED driver to eliminate current ripple
* Proprietary scheme for low power loss ≤2.5%
* Adaptive for wide output speculation： Output voltage range from 20V to 60V Output current≤1A
* Open LED Protection and Short LED protection

SY5862 Applications

* It is applied as a current filter to the output of a LED driver, especially single stage LED driver. It adopts adaptive control scheme and no additional electrical design is needed. Reliable open/short LED protection and over thermal protection are all provided. Ordering Information SY5862 ( )

📥 Download Datasheet

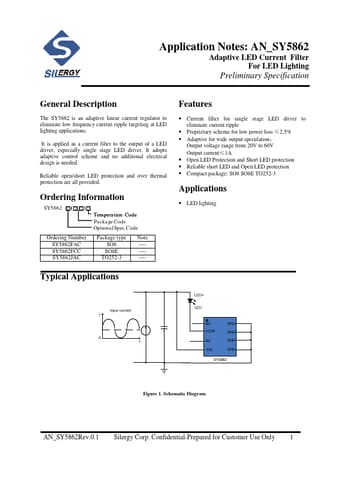

Preview of SY5862 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY5862
Manufacturer
Silergy
File Size
766.85 KB
Datasheet
SY5862-Silergy.pdf
Description
Adaptive LED Current Filter
