SY5802 Single Stage Flyback And PFC Controller

SY5802 Description

SY5802 Single Stage Flyback And PFC Controller With Primary Side Control For LED Lighting and PWM Dimming or Analog Dimming device option Preliminary .
The SY5802 is a single stage Flyback and PFC controller targeting at LED lighting applications with PWM/Analog dimming.

SY5802 Features

* Primary side control eliminates the opto-coupler.
* PWM or Analog Dimming.
* Valley turn-on of the primary MOSFET to achieve low switching losses
* 0.3V primary current sense reference voltage leads to

SY5802 Applications

* with PWM/Analog dimming. It is a primary side controller without applying any secondary feedback circuit for low cost, and drives the Flyback converter in the quasiresonant mode to achieve higher efficiency. It keeps the Flyback converter in constant on time operation to achieve high power factor. O

📥 Download Datasheet

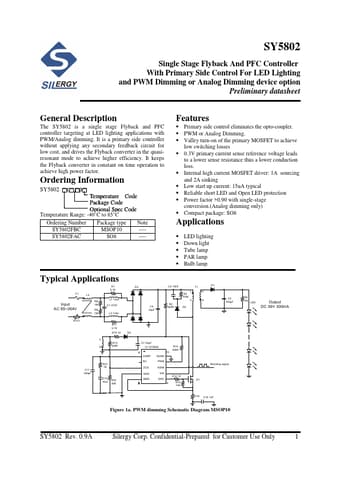

Preview of SY5802 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY5802
Manufacturer
Silergy
File Size
202.74 KB
Datasheet
SY5802-Silergy.pdf
Description
Single Stage Flyback And PFC Controller
