SY22316PS32-G00 - 16-bit Proximity Sensor

General Description

SY22316PS32-G00 integrates an IR photodetector, a flexible data acquisition engine and a 940 nm Vertical Cavity Surface Emitting Laser diode (VCSEL) in a single package.

Key Features

  • Reliable Proximity Detection between 3mm and 15cm.
  • 16-bit ADC with Programmable Integration Time, Gain and Sleep Time Enables High SNR Measurements and Low Power Operation.
  • 940 nm VCSEL Eliminates the “Red Glow”.
  • Programmable VCSEL Drive Current with Built-in Temperature Compensation.
  • Uses Proprietary Design Techniques and Package to Reduce Optical Crosstalk.
  • Input Voltage Range: 2.8V to 3.6V.
  • Current Consumption (Max):.
  • Inactive -2μA.
  • Sleep Mode -.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY22 10 WATT VOLTAGE REGULATOR Semtech Corporation
SY20 10 WATT VOLTAGE REGULATOR Semtech Corporation
SY2128 2048 x 8 Static RAM Synertek
SY2158 1024 x 8 Static RAM Synertek
SY2305 P-Channel logic enhancement mode power field effect transistors SANY

Other Datasheets by Silergy

Part Number Description
SY22312CS42-J10 11-Channel Multi-Spectrum Sensor
SY22309AS22-J01 21-bit Dynamic Range True Ambient Light Sensor
SY20011 1MHz Synchronous Buck Converter
SY20018I 1A Synchronous Step-Down Regulator
SY20114 2A Synchronous Step-Down Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

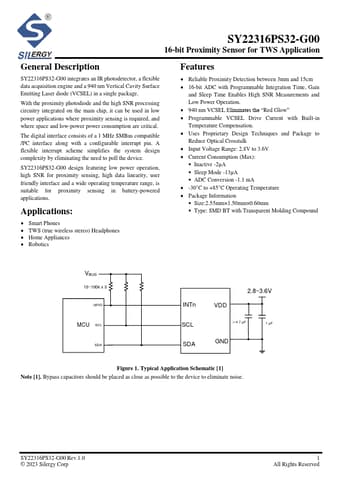

SY22316PS32-G00 16-bit Proximity Sensor for TWS Application General Description SY22316PS32-G00 integrates an IR photodetector, a flexible data acquisition engine and a 940 nm Vertical Cavity Surface Emitting Laser diode (VCSEL) in a single package. With the proximity photodiode and the high SNR processing circuitry integrated on the main chip, it can be used in low power applications where proximity sensing is required, and where space and low-power power consumption are critical. The digital interface consists of a 1 MHz SMBus compatible /I²C interface along with a configurable interrupt pin. A flexible interrupt scheme simplifies the system design complexity by eliminating the need to poll the device.
