SA23006 6A Single Synchronous Buck Converter

SA23006 Description

SA23006 5.5V, 6A Single Synchronous Buck Converter General .
The SA23006 synchronous buck converter has integrated power MOSFETs, an input voltage range of 2.

SA23006 Features

* 2.8V to 5.5V Input Voltage Range
* Up to 6A Output Current
* External Adjustable Output Voltage with ±1.2% Reference Voltage Accuracy
* 1μA Shutdown Current (Typical)
* 38 µA Quiescent Current (Typical)
* Adjustable Switching Frequency of 1.8MHz to 3MHz
* PWM or PFM Ope

SA23006 Applications

* Digital Cockpit
* Advanced Driver Assistance System (ADAS)
* Surround View ECU
* Other Automotive Electronic Equipment Typical Application Circuit VIN：2.8V to 5.5V 2 VIN CIN 10µF
* 3 8 RPG 100kΩ 9 CSS 15nF 6 EN PG SS/TR 7 RFS 7.5kΩ FSET SW 3 L 0.22µH FB 5 MODE_ 1 SY

📥 Download Datasheet

Preview of SA23006 PDF

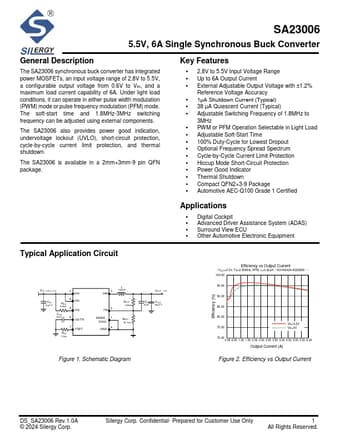

datasheet Preview Page 2 datasheet Preview Page 3
