SA2332 - High Brightness Chip LED Lamp

Features

  • Colorless transparency lens type.
  • Compact type.
  • Radiation size 2.9mm(L)×1.6mm(W) surface mount type.

📥 Download Datasheet

Datasheet Details

Part number SA2332
Manufacturer AUK corp
File Size 224.28 KB
Description High Brightness Chip LED Lamp
Datasheet download datasheet SA2332 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SA23-11 SINGLE DIGIT NUMERIC DISPLAY Kingbright
SA23-11GWA Single Digit Numeric Display Kingbright
SA23-11SRWA Single Digit Numeric Display Kingbright
SA23-11SURKWA Single Digit Numeric Display Kingbright
SA23-12 SINGLE DIGIT NUMERIC DISPLAY Kingbright

Other Datasheets by AUK corp

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

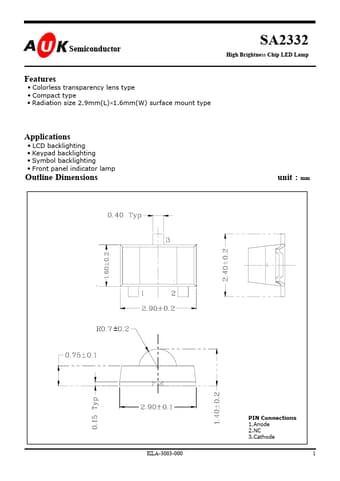

Semiconductor SA2332 High Brightness Chip LED Lamp Features • Colorless transparency lens type • Compact type • Radiation size 2.9mm(L)×1.6mm(W) surface mount type Applications • • • • LCD backlighting Keypad backlighting Symbol backlighting Front panel indicator lamp Outline Dimensions unit : mm ± PIN Connections 1.Anode 2.NC 3.Cathode KLA-3003-000 1 SA2332 Absolute maximum ratings Characteristic Power Dissipation Forward Current * Peak Forward Current Reverse Voltage Operating Temperature Storage Temperature * Soldering Temperature (Reflow soldering) 2 1 Symbol PD IF IFP VR Topr Tstg Tsol Ratings 70 25 50 4 -20∼80 -25∼85 240°C for 3 seconds Unit mW mA mA V °C °C *1.Duty ratio = 1/16, Pulse width = 0.1ms *2.
