SA9259 5-Channel BTL Driver

Silan

SA9259 Description

SA9259 5-CH BTL DRIVER FOR CD PLAYER WITH 5V OUTPUT VOLTAGE .
The SA9259 is a 5-channel motor driver for driving focus actuator, tracking actuator, sled motor, spindle motor and loading motor in products such as.

SA9259 Features

* Wide operating supply voltage range: 6V~13.2V www. DataSheet4U. com
* Thermal shutdown circuit on chip
* Built-in 5V regulator controller.
* Level shift circuit on chip.
* Built-in Mute mode.
* Built-in Loading motor speed control circuit.
* Built-in 1 phase, full-wave,

SA9259 Applications

* CD-PLAYER
* VIDEO-CD
* CAR-CD ORDERING INFORMATION Device SA9259 Package HSOP-28-375-0.8 BLOCK DIAGRAM ABSOLUTE MAXIMUM RATINGS (Tamb=25°C) Characteristics Maximum supply voltage Power dissipation Operating temperature Storage temperature Maximum current output Symbol VCCMAX PD TOPR

📥 Download Datasheet

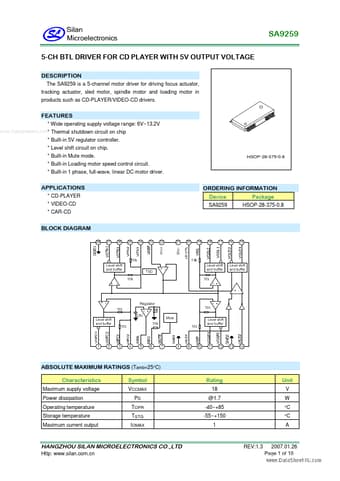

SA9259 Datasheet Preview — Preview of SA9259 PDF
