SA9203 6/3 X 8 PORT EXPANDER

SA9203 Description

sames .
The SAMES SA9203/5 Port Expander is a SA9203 CMOS device suited to microprocessor based applications requiring input/output port expansion.

SA9203 Features

* n SA9203/5 6/3 X 8 PORT EXPANDER Six (SA9203) or three (SA9205) 8-Bit I/O Ports Each bit of one port independently programmable as input or output Five (SA9203) or two (SA9205) remaining ports can be individually configured as input or output. (Direction applicable to all 8 pins of each port. ) One

SA9203 Applications

* requiring input/output port expansion. The device interfaces very 9 8 7 6 5 4 3 2 1 68 67 66 65 64 63 62 61 simply to any microcontroller/micro60 PA 0 10 59 processor with a multiplexed address/data PA 1 11 58 PA 12 2 57 bus structure. PA 3 13 56 PA 4 14 55 The SA9203 includes 8 independently PA 5 1

📥 Download Datasheet

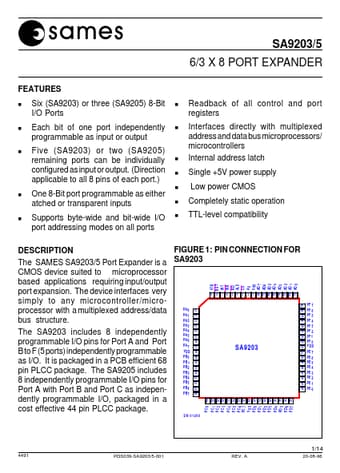

Preview of SA9203 PDF
