SC6105 VOLTAGE MODE PWM POWER SUPPLY

SC6105 Description

SC6105 VOLTAGE MODE PWM POWER SUPPLY WITH BUILT-IN SUPERVISOR, PROTECTION AND REGULATION .
The SC6105 is a switching mode power supply controller for computers.

SC6105 Features

* Over voltage protection for 3.3V/5V/12V
* Under voltage protection for 3.3V/±5V/±12V
* Over power protection
* Short circuit protection
* AC-input under voltage protection
* Power good circuitry
* PSON for remote controller
* Delay time for PSON or PG signals

SC6105 Applications

* Switching mode power supply for computer

📥 Download Datasheet

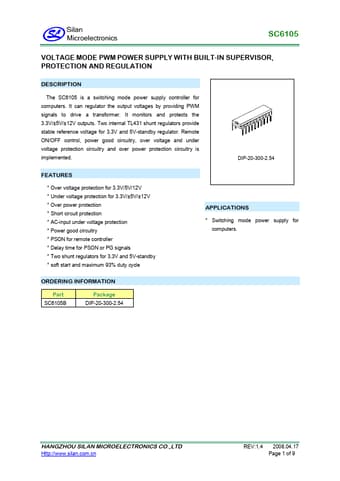

Preview of SC6105 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC6105
Manufacturer
Silan Semiconductors
File Size
363.67 KB
Datasheet
SC6105-SilanSemiconductors.pdf
Description
VOLTAGE MODE PWM POWER SUPPLY
