SC60220 Sine and cosine output high speed rotary encoder

SC60220 Description

SC60220 www.semiment.com Sine and cosine output high speed rotary encoder .
SC60220 is a non-contact high-speed and high-precision magnetic encoder chip.

SC60220 Features

* Contactless 12-bit resolution rotary encoder
* 12-bit absolute outputs
* SIN/COS full difference output
* Incremental outputs
* 2V（VPP）
* Angle linearity error < ±0.5°
* Maximum tracking speed: 20krpm
* Wide temperature range: -40℃ to 125℃
* SSOP16 package

SC60220 Applications

* Contactless rotary position sensing
* Brushless DC motor commutation
* Robotics
* Angular encoder

📥 Download Datasheet

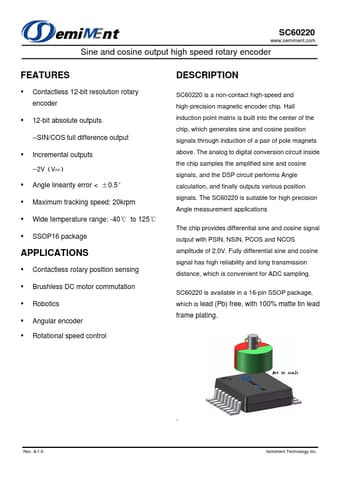

Preview of SC60220 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC60220
Manufacturer
Semiment
File Size
328.53 KB
Datasheet
SC60220-Semiment.pdf
Description
Sine and cosine output high speed rotary encoder
