SVS24N60FD2, SVS24N60FJD2, 600V DP MOS POWER TRANSISTOR

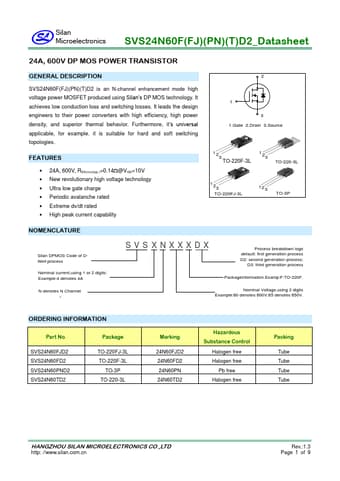

Silan Microelectronics SVS24N60F(FJ)(PN)(T)D2_Datasheet 24A, 600V DP MOS POWER TRANSISTOR GENERAL .
SVS24N60F(FJ)(PN)(T)D2 is an N-channel enhancement mode high voltage power MOSFET produced using Silan’s DP MOS technology.

SVS24N60FJD2-SilanMicroelectronics.pdf

SVS24N60FD2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SVS24N60FD2, SVS24N60FJD2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SVS24N60FD2, SVS24N60FJD2

Manufacturer:

Silan Microelectronics

File Size:

352.86 KB

Description:

600V DP MOS POWER TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: SVS24N60FD2, SVS24N60FJD2.
Please refer to the document for exact specifications by model.

Features

* 24A, 600V, RDS(on)(typ. )=0.14@VGS=10V
* New revolutionary high voltage technology
* Ultra low gate charge
* Periodic avalanche rated
* Extreme dv/dt rated
* High peak current capability 2 1 3 1.Gate 2.Drain 3.Source 1 23 123 TO-220F-3L TO-220-3L 1 23 TO-220FJ-3L 123
