SVS20N60FD2, SVS20N60FJD2-SilanMicroelectronics, 600V SUPER JUNCTION MOS POWER TRANSISTOR

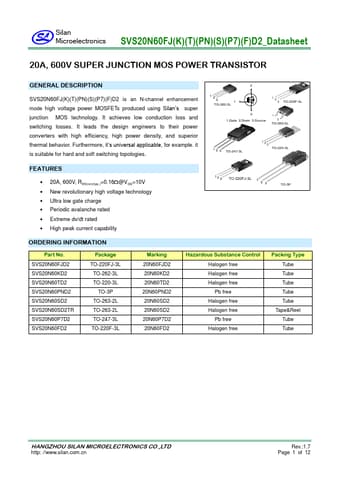

Silan Microelectronics SVS20N60FJ(K)(T)(PN)(S)(P7)(F)D2_Datasheet 20A, 600V SUPER JUNCTION MOS POWER TRANSISTOR GENERAL .
SVS20N60FJ(K)(T)(PN)(S)(P7)(F)D2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s super junction MOS technology.

SVS20N60FJD2-SilanMicroelectronics_removed.pdf

SVS20N60FD2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SVS20N60FD2, SVS20N60FJD2-SilanMicroelectronics. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SVS20N60FD2, SVS20N60FJD2-SilanMicroelectronics

Manufacturer:

Silan Microelectronics

File Size:

474.58 KB

Description:

600V SUPER JUNCTION MOS POWER TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: SVS20N60FD2, SVS20N60FJD2-SilanMicroelectronics.
Please refer to the document for exact specifications by model.

Features

* 20A, 600V, RDS(on)(typ. )=0.16@VGS=10V
* New revolutionary high voltage technology
* Ultra low gate charge
* Periodic avalanche rated
* Extreme dv/dt rated
* High peak current capability 12 3 TO-220FJ-3L 1 2 3 TO-3P ORDERING INFORMATION Part No. SVS20N60FJD2 SVS20N60KD
