SVG105R5NT - 98V N-CHANNEL MOSFET

Silan Microelectronics

📥 Download Datasheet

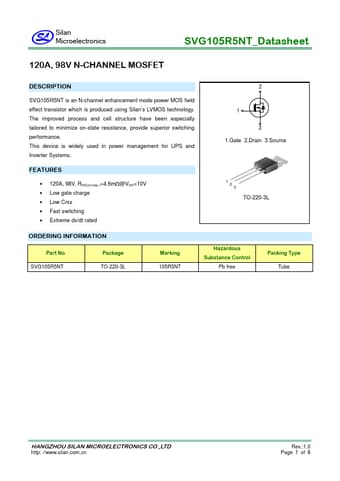

SVG105R5NT Datasheet Preview — Preview of SVG105R5NT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SVG105R5NT
Manufacturer	Silan Microelectronics
File Size	266.55 KB
Description	98V N-CHANNEL MOSFET
Datasheet	SVG105R5NT-SilanMicroelectronics.pdf

SVG105R5NT Product details

Description

SVG105R5NT is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.

Features

120A, 98V, RDS(on)(typ. )=4.6m@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Extreme dv/dt rated 2 1 3 1.Gate 2.Drain 3.Source 12 3 TO-220-3L.
