SBD10C60F, SBD10C60T 60V SCHOTTKY RECTIFIER

Silan Microelectronics

Description

SBD10C60T/F_Datasheet 10A, 60V SCHOTTKY RECTIFIER .
SBD10C60T/F is schottky rectifier fabricated in silicon epitaxial planar technology, Guard ring construction for over voltage protection and enhanced.

📥 Download Datasheet

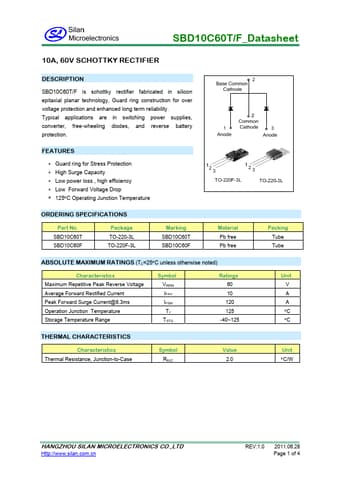

SBD10C60F Datasheet Preview — This datasheet PDF includes multiple part numbers: SBD10C60F, SBD10C60T. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SBD10C60F, SBD10C60T
Manufacturer: Silan Microelectronics
File Size: 210.49 KB
Datasheet: SBD10C60T-SilanMicroelectronics.pdf
Description: 60V SCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SBD10C60F, SBD10C60T.
Please refer to the document for exact specifications by model.

Features

* ∗ Guard ring for Stress Protection ∗ High Surge Capacity ∗ Low power loss , high efficiency ∗ Low Forward Voltage Drop ∗ 125°C Operating Junction Temperature ORDERING SPECIFICATIONS Part No. SBD10C60T SBD10C60F Package TO-220-3L TO-220F-3L Marking SBD10C60T SBD10C60F Material Pb free Pb free A
