P14N65TD2, P14N65FJD 650V SUPER JUNCTION MOS POWER TRANSISTOR

P14N65TD2 Description

Silan Microelectronics SVSP14N65FJD/T/KD2_Datasheet 14A, 650V SUPER JUNCTION MOS POWER TRANSISTOR .
SVSP14N65FJD/T/KD2 is an N-channel enhancement mode high voltage power MOSFETs produced using Silan’s DPMOS technology.

P14N65TD2 Features

* 14A,650V, RDS(on)(typ. )=0.26@VGS=10V
* New revolutionary high voltage technology
* Ultra low gate charge
* Periodic avalanche rated
* Extreme dv/dt rated
* High peak current capability 123 12 3 TO-220FJD-3L TO-220-3L ORDERING INFORMATION Part No. SVSP14N65FJDD2 SVSP1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: P14N65TD2, P14N65FJD. Please refer to the document for exact specifications by model.

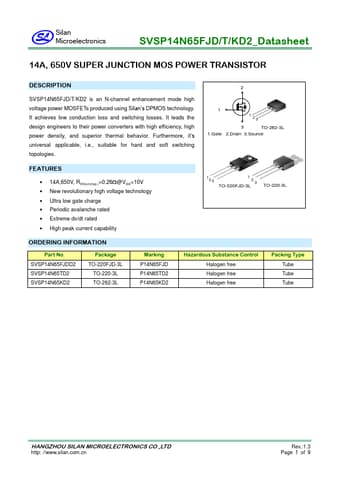

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P14N65TD2, P14N65FJD
Manufacturer
Silan Microelectronics
File Size
303.37 KB
Datasheet
P14N65FJD-SilanMicroelectronics.pdf
Description
650V SUPER JUNCTION MOS POWER TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: P14N65TD2, P14N65FJD.
Please refer to the document for exact specifications by model.
