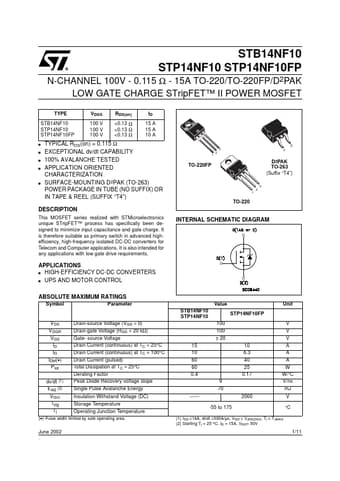

STB14NF10 STP14NF10 STP14NF10FP N-CHANNEL 100V - 0.115 Ω - 15A TO-220/TO-220FP/D2PAK LOW GATE CHARGE STripFET™ II POWER MOSFET TYPE VDSS RDS(on) I.
This MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capacitance and gate cha.

P14NF10 Applications

* It is also intended for any applications with low gate drive requirements. APPLICATIONS s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL 3 2 1 TO-220FP 3 1 D2PAK TO-263 (Suffix “T4”) 3 2 1 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter VDS Drain-source
