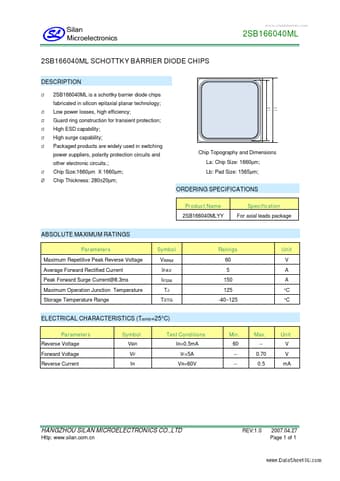

2SB166040ML, 2SB166040ML_SilanMicroelectronicsJoint - SCHOTTKY BARRIER DIODE CHIPS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SB166040ML, 2SB166040ML_SilanMicroelectronicsJoint. Please refer to the document for exact specifications by model.

Datasheet Details

Part number 2SB166040ML, 2SB166040ML_SilanMicroelectronicsJoint
Manufacturer Silan Microelectronics Joint-stock
File Size 38.38 KB
Description SCHOTTKY BARRIER DIODE CHIPS
Datasheet download datasheet 2SB166040ML_SilanMicroelectronicsJoint-stock.pdf
Note This datasheet PDF includes multiple part numbers: 2SB166040ML, 2SB166040ML_SilanMicroelectronicsJoint.
Please refer to the document for exact specifications by model.

2SB166040ML Product details

Description

Ø Ø Ø Ø Ø Ø 2SB166040ML is a schottky barrier diode chips Lb Low power losses, high efficiency; Guard ring construction for transient protection; High ESD capability; High surge capability; Packaged products are widely used in switching power suppliers, polarity protection circuits and other electronic circuits.; Chip Topography and Dimensions La: Chip Size: 1660µm; Lb: Pad Size: 1565µm; Ø Chip Size:1660µm X 1660µm; Chip Thickness: 280±20µm; Ø ORDERING SPECIFICATIONS Product Name 2SB166040
