PC-10-90 Datasheet (Signal Transformer) - Printed Circuit Mount Power Transformers

PC-10-90, Printed Circuit Mount Power Transformers

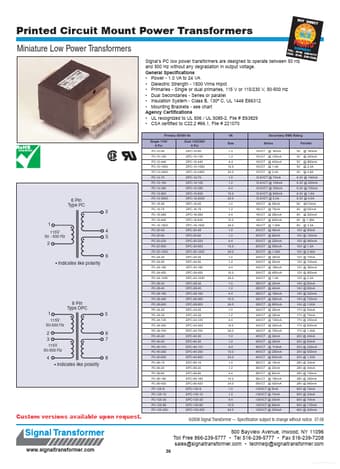

Printed Circuit Mount Power Transformers Miniature Low Power Transformers Signal’s PC low power transformers are designed to operate between 50 Hz and 500 Hz without any degradation in output voltage.

  General Specifications Power - 1.0 VA to 24 VA Dielectric Strength - 1500 Vrms Hipot Primaries - Single or dual primaries, 115 V or 115/230 V, 50-500 Hz Dual Secondaries - Series or parallel Insulation System - Class B, 130º C, UL 1446 E66312
