PC-17L2 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

Name: PC-17L2
SKU: PC-17L2-35760

KODENSHI KOREA CORP

The PC-17L2 by KODENSHI KOREA CORP is a Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting). Below is the official datasheet preview.

📥 Download Datasheet

PC-17L2 Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting) by KODENSHI KOREA CORP - Datasheet Preview — Official preview page of the **PC-17L2** Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting) datasheet (KODENSHI KOREA CORP).

Datasheet Details

Part number	PC-17L2
Manufacturer	KODENSHI KOREA CORP
File Size	288.70 KB
Description	Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
Datasheet	PC-17L2_KodenshiCorp.pdf

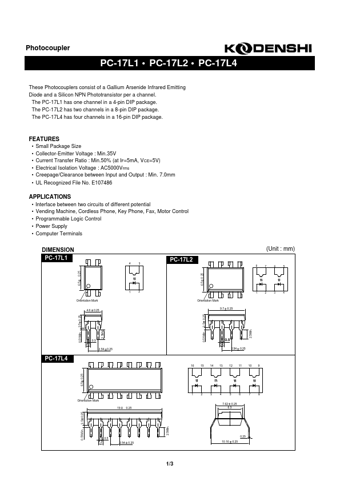

Additional preview pages of the PC-17L2 datasheet.

PC-17L2 Product details

Features

Small Package Size.
Collector-Emitter Voltage : Min.35V.
Current Transfer Ratio : Min.50% (at IF=5mA, VCE=5V).
Electrical Isolation Voltage : AC5000Vrms.
Creepage/Clearance between Input and Output : Min. 7.0mm.
UL Recognized File No. E107486.
