L24C32 - (L24C32 / L24C64) Two Wire Serial EEPROM

Sigma

📥 Download Datasheet

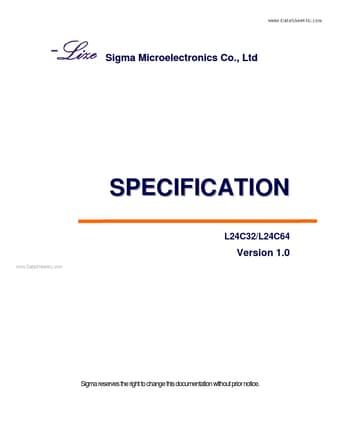

L24C32 Datasheet Preview — Preview of L24C32 PDF

Datasheet Details

Part number: L24C32
Manufacturer: Sigma
File Size: 644.11 KB
Datasheet: L24C32_Sigma.pdf
Description: (L24C32 / L24C64) Two Wire Serial EEPROM

L24C32 Product details

Description

The L24C32/L24C64 provides 32,768/65,536 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 4096/8192 words of 8 bits each.

Features

L24C32/L24C64 32K bits (4096 X 8) / 64K bits (8192 X 8) Features Wide Voltage Operation - VCC = 1.8V to 5.5V Operating Ambient Temperature: -40 to +85 Internally Organized: - L24C32, 4096 X 8 (32K bits) - L24C64, 8192 X 8 (64K bits) Two-wire Serial Interface Schmitt Trigger, Filtered Inputs for Noise Suppression Bidirectional Data Transfer Protocol 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility Write Protect Pin for Hardware Data Protection 32-byte Page (32K, 64K) Write Modes Partial Pag.
