L24C16, L24C02B - (L24Cxx) EEPROM

LIZE

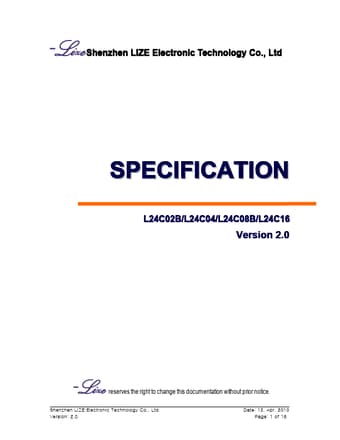

L24C16 Datasheet Preview — This datasheet PDF includes multiple part numbers: L24C16, L24C02B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	L24C16, L24C02B
Manufacturer	LIZE
File Size	1.14 MB
Description	(L24Cxx) EEPROM
Datasheet	L24C02B_LIZE.pdf
Note	This datasheet PDF includes multiple part numbers: L24C16, L24C02B. Please refer to the document for exact specifications by model.

L24C16 Product details

Description

The L24C02B/L24C04/L24C08B/L24C16 provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each.

Features

Wide Voltage Operation VCC = 1.8V to 5.5V Operating Ambient Temperature: -40℃ to +85℃ Internally Organized: - L24C02B, 256 X 8 (2K bits) - L24C04, 512 X 8 (4K bits) - L24C08B, 1024 X 8 (8K bits) L24C16, 2048 X 8 (16K bits) Two-wire Serial Interface Schmitt Trigger, Filtered Inputs for Noise Suppression Bidirectional Data Transfer Protocol 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility Write Protect Pin f.
