T70L5D164-5 - (T70 Series) 10 Amp Printed Circuit Board Relay

Siemens

📥 Download Datasheet

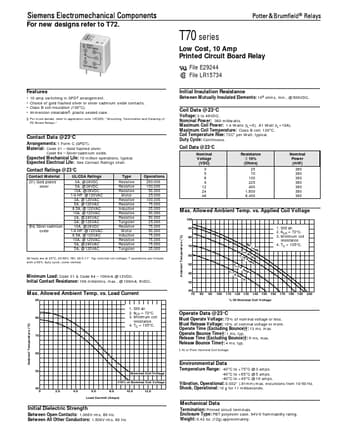

T70L5D164-5 Datasheet Preview — Preview of T70L5D164-5 PDF

datasheet Preview Page 2

Datasheet Details

Part number: T70L5D164-5
Manufacturer: Siemens
File Size: 118.89 KB
Datasheet: T70L5D164-5_Siemens.pdf
Description: (T70 Series) 10 Amp Printed Circuit Board Relay

T70L5D164-5 Product details

Features

10 amp switching in SPDT arrangement.
Choice of gold flashed silver or silver cadmium oxide contacts.
Class B coil insulation (130°C).
Immersion cleanable.
, plastic sealed case.
For more details, refer to application note 13C265, “Mounting, Termination and Cleaning of PC Board Relays. ” Initial Insulation Resistance Between Mutually Insulated Elements: 108 ohms, min. , @ 500VDC. Coil Data @ 23°C Voltage: 3 to 48VDC. Nominal Power: 360 milliwatts.
