T70L5D164-48 - (T70 Series) 10 Amp Printed Circuit Board Relay

Download the T70L5D164-48 datasheet PDF. This datasheet also covers the T70L5D164-5 variant, as both devices belong to the same (t70 series) 10 amp printed circuit board relay family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • 10 amp switching in SPDT arrangement.
  • Choice of gold flashed silver or silver cadmium oxide contacts.
  • Class B coil insulation (130°C).
  • Immersion cleanable.
  • , plastic sealed case.
  • For more details, refer to.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (T70L5D164-5_Siemens.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
T700N Phase Control Thyristor Infineon
T700N SILICON CONTROLLED RECTIFIER Telefunken Microelectronics
T7023 Bluetooth 2.4-GHz Power Amplifier ATMEL Corporation
T7024 ISM 2.4-GHz Front- End IC ATMEL Corporation
T7026 ISM 2.4 GHz Front End IC ATMEL Corporation

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
T70L5D164-12 (T70 Series) 10 Amp Printed Circuit Board Relay
T70L5D164-24 (T70 Series) 10 Amp Printed Circuit Board Relay
T70L5D164-5 (T70 Series) 10 Amp Printed Circuit Board Relay
T70L5D164-9 (T70 Series) 10 Amp Printed Circuit Board Relay
T70L5D131-12 10 Amp Printed Circuit Board Relay

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

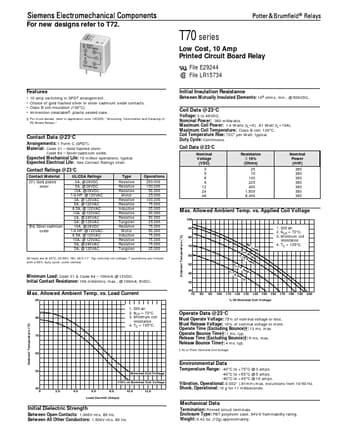

For new designs refer to T72. T70 series Low Cost, 10 Amp Printed Circuit Board Relay File E29244 File LR15734 Features • 10 amp switching in SPDT arrangement. • Choice of gold flashed silver or silver cadmium oxide contacts. • Class B coil insulation (130°C). • Immersion cleanable§, plastic sealed case. § For more details, refer to application note 13C265, “Mounting, Termination and Cleaning of PC Board Relays.” Initial Insulation Resistance Between Mutually Insulated Elements: 108 ohms, min., @ 500VDC. Coil Data @ 23°C Voltage: 3 to 48VDC. Nominal Power: 360 milliwatts. Maximum Coil Power: 1.4 Watts (IL=0); .81 Watt (IL=10A). Maximum Coil Temperature: Class B coil; 130°C. Coil Temperature Rise: 72C° per Watt, typical. Duty Cycle: Continuous.
