80N03L SPB80N03L

80N03L Description

SPP80N03L SIPMOS® Power Transistor .

80N03L Features

* N channel
* Enhancement mode Product Summary Drain source voltage Drain-Source on-state resistance Continuous drain current VDS ID 30 80 V A RDS(on) 0.006 Ω
* Avalanche rated
* Logic Level
* dv/dt rated
* 175°C operating temperature Type SPP80

80N03L Applications

* processes and circuits implemented within components or assemblies. The information describes a type of component and shall not be considered as warranted characteristics. Terms of delivery and rights to change design reserved. For questions on technology, delivery and prices please contact the Sem

📥 Download Datasheet

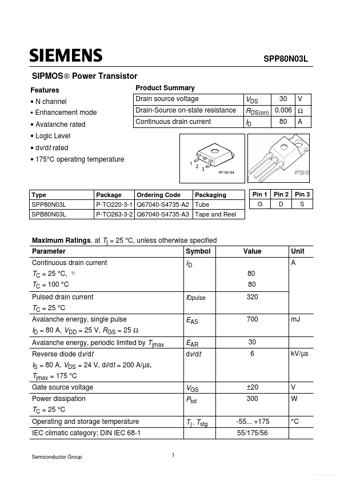

Preview of 80N03L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
80N03L
Manufacturer
Siemens
File Size
107.21 KB
Datasheet
80N03L-Siemens.pdf
Description
SPB80N03L
