TDA16888 - High Performance Power Combi Controller

Name: TDA16888
SKU: TDA16888-378162

Siemens Semiconductor

📥 Download Datasheet

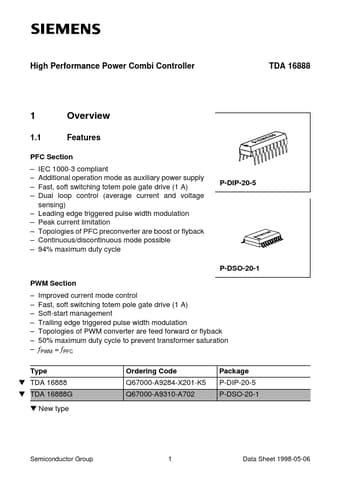

TDA16888 Datasheet Preview — Preview of TDA16888 PDF

Datasheet Details

Part number	TDA16888
Manufacturer	Siemens Semiconductor
File Size	472.36 KB
Description	High Performance Power Combi Controller
Datasheet	TDA16888_SiemensSemiconductorGroup.pdf

TDA16888 Product details

Description

Power Supply The TDA 16888 is protected against overvoltages typically above 17.5 V by an internal Zener diode Z3 at pin 9 (VCC) and against electrostatic discharging at any pin by special ESD circuitry.

Features

PFC Section.
IEC 1000-3 compliant Additional operation mode as auxiliary power supply Fast, soft switching totem pole gate drive (1 A) Dual loop control (average current and voltage sensing) Leading edge triggered pulse width modulation Peak current limitation Topologies of PFC preconverter are boost or flyback Continuous/discontinuous mode possible 94% maximum duty cycle P-DIP-20-5 P-DSO-20-1 PWM Section.
