SFH4590 - Schnelle GaAlAs-IR-Lumineszenzdiode High-Speed GaAlAs Infrared Emitter

Siemens Semiconductor Group

The SFH4590 by Siemens Semiconductor Group is a Schnelle GaAlAs-IR-Lumineszenzdiode High-Speed GaAlAs Infrared Emitter. Below is the official datasheet preview.

📥 Download Datasheet

SFH4590 Schnelle GaAlAs-IR-Lumineszenzdiode High-Speed GaAlAs Infrared Emitter by Siemens Semiconductor Group - Datasheet Preview — Official preview page of the **SFH4590** Schnelle GaAlAs-IR-Lumineszenzdiode High-Speed GaAlAs Infrared Emitter datasheet (Siemens Semiconductor Group).

Datasheet Details

Part number	SFH4590
Manufacturer	Siemens Semiconductor Group
File Size	58.95 KB
Description	Schnelle GaAlAs-IR-Lumineszenzdiode High-Speed GaAlAs Infrared Emitter
Datasheet	SFH4590_SiemensSemiconductorGroup.pdf

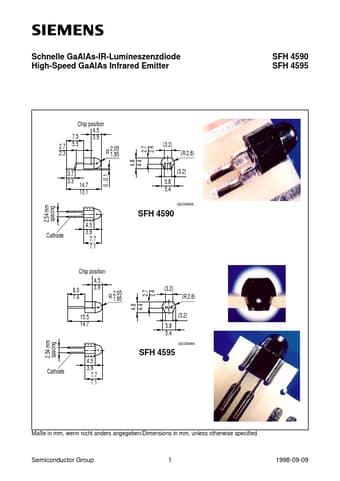

Additional preview pages of the SFH4590 datasheet.

SFH4590 Product details

Description

Betriebs- und Lagertemperatur Operating and storage temperature range Sperrspannung Reverse voltage Durchlaβstrom Forward current Stoβstrom, tp = 10 µs, D = 0 Surge current Verlustleistung Power dissipation Wärmewiderstand Sperrschicht - Umgebung, freie Beinchenlänge max. 40 + 100 3 100 2 200 375 Einheit Unit °C V mA A mW K/W

Features

q High pulse power and high radiant flux Φe q Very short switching times (10 ns) q Low forward voltage and power dissipation q Very high long-time stability q High reliability q Available on tape and reel q Suitable for surface mounting (SMT) q Same package as photodiode SFH 2500/ SFH 2505 and phototransistor SFH 3500/ SFH 3505 q Spectral match with silicon photodetectors.
