SFH4510 - GaAs-IR-Lumineszenzdioden 950 nm GaAs Infrared Emitters 950 nm

Siemens Semiconductor Group

The SFH4510 by Siemens Semiconductor Group is a GaAs-IR-Lumineszenzdioden 950 nm GaAs Infrared Emitters 950 nm. Below is the official datasheet preview.

📥 Download Datasheet

SFH4510 GaAs-IR-Lumineszenzdioden 950 nm GaAs Infrared Emitters 950 nm by Siemens Semiconductor Group - Datasheet Preview — Official preview page of the **SFH4510** GaAs-IR-Lumineszenzdioden 950 nm GaAs Infrared Emitters 950 nm datasheet (Siemens Semiconductor Group).

Datasheet Details

Part number	SFH4510
Manufacturer	Siemens Semiconductor Group
File Size	58.44 KB
Description	GaAs-IR-Lumineszenzdioden 950 nm GaAs Infrared Emitters 950 nm
Datasheet	SFH4510_SiemensSemiconductorGroup.pdf

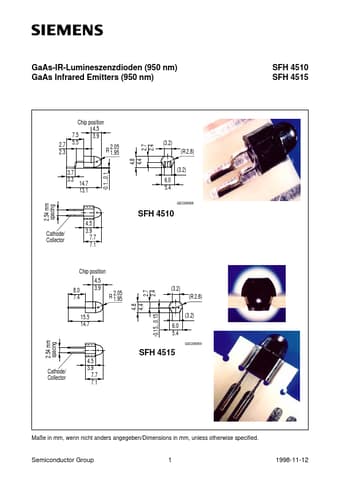

Additional preview pages of the SFH4510 datasheet.

SFH4510 Product details

Description

Betriebs- und Lagertemperatur Operating and storage temperature range Sperrschichttemperatur Junction temperature Sperrspannung Reverse voltage Durchlaßstrom Forward current Stoßstrom, tp = 10 µs, D = 0 Surge current Verlustleistung Power dissipation Symbol Symbol Wert Value 40 + 85 85 5 100 3 150 300 Einheit Unit °C °C V mA A mW K/W Top; Tstg Tj VR IF (DC) IFSM Ptot Wärmewiderstand Sperrschicht - Umgebung RthJA bei Montage auf FR4 Platine, Padgröße je 20 mm2 Thermal resistance junc

Features

q Fabricated in a liquid phase epitaxy process q Suitable for surface mounting (SMT) q Available on tape and reel q Same package as photodiode SFH 2500/ SFH 2505 and phototransistor SFH 3500/ SFH 3505 q High reliability q Spectral match with silicon photodetectors Anwendungen q IR-Fernsteuerung von Fernseh- und Rundfunkgeräten, Videorecordern, Lichtdimmern q Gerätefernsteuerungen für Gleich- und Wechsellichtbetrieb.
