Q62702-C2486 NPN/PNP Silicon Digital Tansistor Array (Switching circuit/ inverter/ interface circuit/ drive circuit)

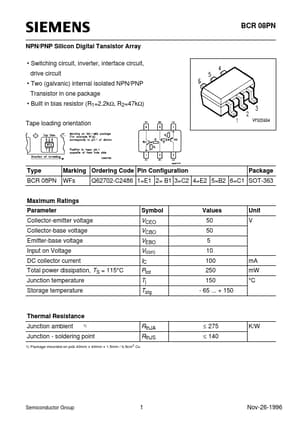

BCR 08PN NPN/PNP Silicon Digital Tansistor Array Switching circuit, inverter, interface circuit, drive circuit Two (galvanic) internal isolated NPN/PNP Transistor in one package Built in bias resistor (R1=2.2kΩ, R2=47kΩ) Tape loading orientation Type BCR 08PN Marking Ordering Code Pin Configuration WFs Package Q62702-C2486 1=E1 2= B1 3=C2 4=E2 5=B2 6=C1 SOT-363 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input.
