Q62702-C2376 Datasheet - Siemens Semiconductor Group

Q62702-C2376 NPN Silicon Digital Transistor Array (Switching circuit/ inverter/ interface circuit/ driver circuit)

BCR 133S NPN Silicon Digital Transistor Array Switching circuit, inverter, interface circuit, driver circuit Two (galvanic) internal isolated Transistors in one package Built in bias resistors (R1=10kΩ, R2=10kΩ) Type BCR 133S Marking Ordering Code Pin Configuration WCs Package Q62702-C2376 1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SOT-363 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current To.

Q62702-C2376_SiemensSemiconductorGroup.pdf

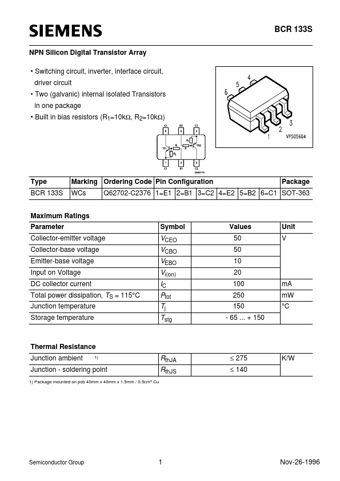

Q62702-C2376 Datasheet Preview — Preview of Q62702-C2376 PDF

Datasheet Details

Part number:

Q62702-C2376

Manufacturer:

Siemens Semiconductor Group

File Size:

43.75 KB

Description:

Npn silicon digital transistor array (switching circuit/ inverter/ interface circuit/ driver circuit).
