Q62702-C1614 - NPN Silicon AF Transistors (For AF driver and output stages High collector current)
Siemens Semiconductor Group
The Q62702-C1614 by Siemens Semiconductor Group is a NPN Silicon AF Transistors (For AF driver and output stages High collector current).
Below is the official datasheet preview.

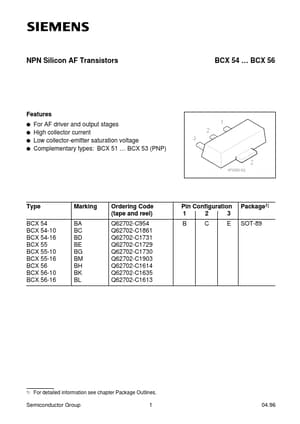

Official preview page of the Q62702-C1614 NPN Silicon AF Transistors (For AF driver and output stages High collector current) datasheet (Siemens Semiconductor Group).
Datasheet Details
Part number
Q62702-C1614
Manufacturer
Siemens Semiconductor Group
File Size
146.13 KB
Description
NPN Silicon AF Transistors (For AF driver and output stages High collector current)
Additional preview pages of the Q62702-C1614 datasheet.
Q62702-C1614 Product details
Features
For AF driver and output stages q High collector current q Low collector-emitter saturation voltage q Complementary types: BCX 51 … BCX 53 (PNP)
q
Type BCX 54 BCX 54-10 BCX 54-16 BCX 55 BCX 55-10 BCX 55-16 BCX 56 BCX 56-10 BCX 56-16
Marking BA BC BD BE BG BM BH BK BL
Ordering Code (tape and reel) Q62702-C954 Q62702-C1861 Q62702-C1731 Q62702-C1729 Q62702-C1730 Q62702-C1903 Q62702-C1614 Q62702-C1635 Q62702-C1613
Pin Configuration 1 2 3 B C E
Package1) SOT-89
1)
For detailed information see.
