BTS432E2 - Smart Highside Power Switch

Name: BTS432E2
SKU: BTS432E2-364450

Siemens Semiconductor Group

📥 Download Datasheet

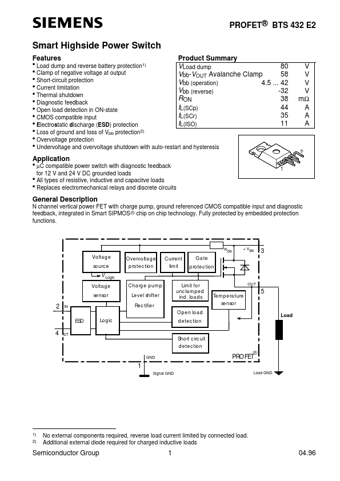

BTS432E2 Datasheet Preview — Preview of BTS432E2 PDF

Datasheet Details

Part number	BTS432E2
Manufacturer	Siemens Semiconductor Group
File Size	142.80 KB
Description	Smart Highside Power Switch
Datasheet	BTS432E2_SiemensSemiconductorGroup.pdf

BTS432E2 Product details

Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, integrated in Smart SIPMOS® chip on chip technology.

Features

Load dump and reverse battery protection1) VLoad dump.
Clamp of negative voltage at output Vbb-VOUT Avalanche.
Short-circuit protection Vbb (operation).
Current limitation Vbb (reverse).
Thermal shutdown RON.
Diagnostic feedback IL(SCp).
Open load detection in ON-state IL(SCr).
CMOS compatible input IL(ISO).
Electrostatic discharge (ESD) protection.
Loss of ground and loss of Vbb protection2).
Ove.
