BTS410D2 - Smart Highside Power Switch

Name: BTS410D2
SKU: BTS410D2-364421

Siemens Semiconductor Group

📥 Download Datasheet

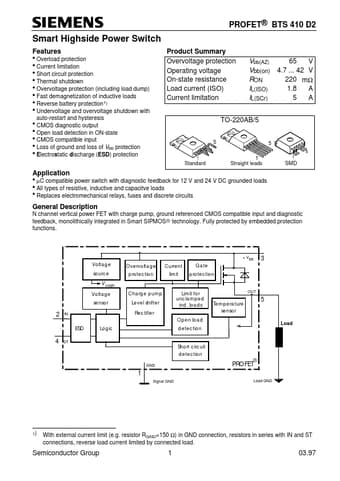

BTS410D2 Datasheet Preview — Preview of BTS410D2 PDF

Datasheet Details

Part number	BTS410D2
Manufacturer	Siemens Semiconductor Group
File Size	170.07 KB
Description	Smart Highside Power Switch
Datasheet	BTS410D2_SiemensSemiconductorGroup.pdf

BTS410D2 Product details

Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology.

Features

Overload protection.
Current limitation.
Short circuit protection.
Thermal shutdown.
Overvoltage protection (including load dump).
Fast demagnetization of inductive loads.
Reverse battery protection1).
Undervoltage and overvoltage shutdown with auto-restart and hysteresis.
CMOS diagnostic output.
Open load detection in ON-state.
CMOS compatible input.
Loss of ground and loss of Vbb protec.
