q q q q

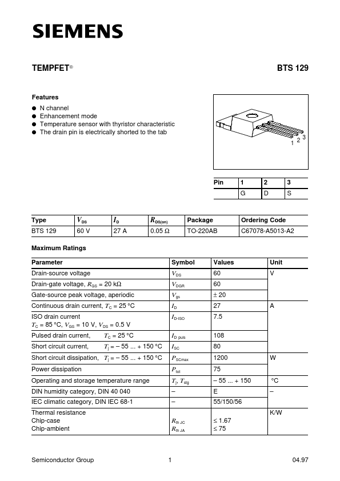

N channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab
1 2
3
Pin
1 G
2 D
3 S
Type BTS 129
VDS
60 V
ID
27 A
RDS(on)
0.05 Ω
Package TO-220AB
Ordering Code C67078-A5013-A2
Maximum Ratings Parameter Drain-source voltage Drain-gate voltage, RGS = 20 kΩ Gate-source peak voltage, aperiodic Continuous drain current, TC = 25 °C ISO drain current TC = 85 °C, VGS = 10 V, VDS = 0.5 V Pulsed drain current, Short circui.
