BSM100GB170DN2, IGBT

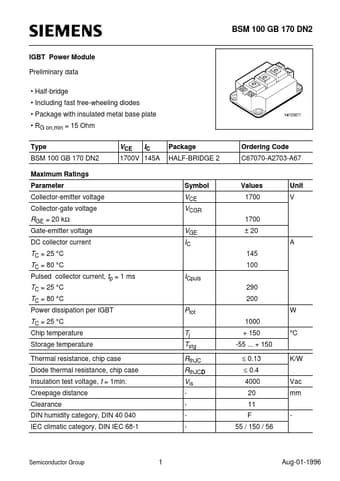

BSM 100 GB 170 DN2 IGBT Power Module Preliminary data Half-bridge Including fast free-wheeling diodes Package with insulated metal base plate RG on,min = 15 Ohm Type BSM 100 GB 170 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1700 1700 Unit V VCE IC Package HALF-BRIDGE 2 Ordering Code C67070-A2703-A67 1700V 145A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 145 100 TC
