BSM100GB120DN2 Datasheet - Siemens Semiconductor Group

BSM100GB120DN2_SiemensSemiconductorGroup.pdf

BSM100GB120DN2 Datasheet Preview — Preview of BSM100GB120DN2 PDF

Datasheet Details

Part number:

BSM100GB120DN2

Manufacturer:

Siemens Semiconductor Group

File Size:

132.19 KB

Description:

Igbt.

BSM100GB120DN2, IGBT

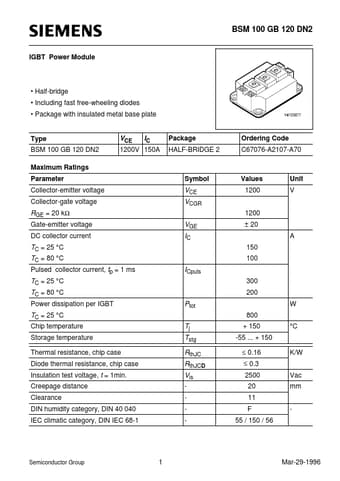

BSM 100 GB 120 DN2 IGBT Power Module Half-bridge Including fast free-wheeling diodes Package with insulated metal base plate Type BSM 100 GB 120 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage VCE IC Package HALF-BRIDGE 2 Ordering Code C67076-A2107-A70 1200V 150A Symbol Values 1200 1200 Unit V VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 150 100 TC = 25 °C TC = 80 °C Pulsed collector curre
