SiT5359 - Ultra-precision Super-TCXO

SiTime

📥 Download Datasheet

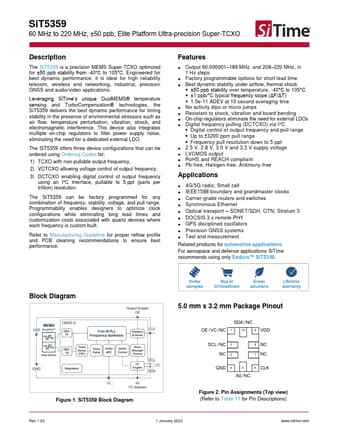

SiT5359 Datasheet Preview — Preview of SiT5359 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SiT5359
Manufacturer	SiTime
File Size	3.43 MB
Description	Ultra-precision Super-TCXO
Datasheet	SiT5359-SiTime.pdf

SiT5359 Product details

Description

The SiT5359 is a precision MEMS Super-TCXO optimized for ±50 ppb stability from -40°C to 105°C.

Features

Output 60.000001.
189 MHz, and 208.
220 MHz, in 1 Hz steps.
Factory programmable options for short lead time.
Best dynamic stability under airflow, thermal shock.
±50 ppb stability over temperature, -40°C to 105°C.
±1 ppb/°C typical frequency slope (ΔF/ΔT).
1.5e-11 ADEV at 10 second averaging time.
No activity dips or micro jumps.
Resistant to shock, vibration and board bending.
On-chip regulators eliminate the need for external LDOs.
