PS235S - 2-Channels Secondary Monitoring IC

SiTI

📥 Download Datasheet

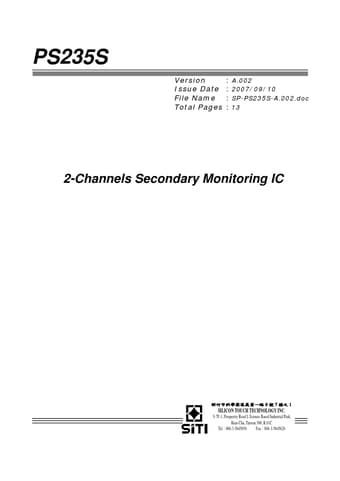

PS235S Datasheet Preview — Preview of PS235S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PS235S
Manufacturer	SiTI
File Size	272.10 KB
Description	2-Channels Secondary Monitoring IC
Datasheet	PS235S-SiTI.pdf

PS235S Product details

Description

PS235S is specially designed for two-channel power supply systems.

Features

Two winding detect function.
Over/Under-voltage protection and lock out.
Over-current protection and lock out.
Over temperature protect protection and lock out.
Fault protection output with open drain output stage.
Three states LEDs driver of power supply.
175mS delay for 12V/5V SPS short-circuit protect.
48mS PSON/ control de-bounce.
20uS de-bounce for noise immunity.
Special care for AC power off 2-Chan.
